Medical device ODM / Medical instrument R&D services / RADIA-G rapid test kit reader
Medical device ODM / Medical instrument R&D services
BK Electronics has an in-house R&D department for development of medical and energy products.
We provide complete solutions for medical instruments, from device contept sketch to development to prototyping and mass production.
We can provide the following ODM services for medical instrument development :
• Product Design:

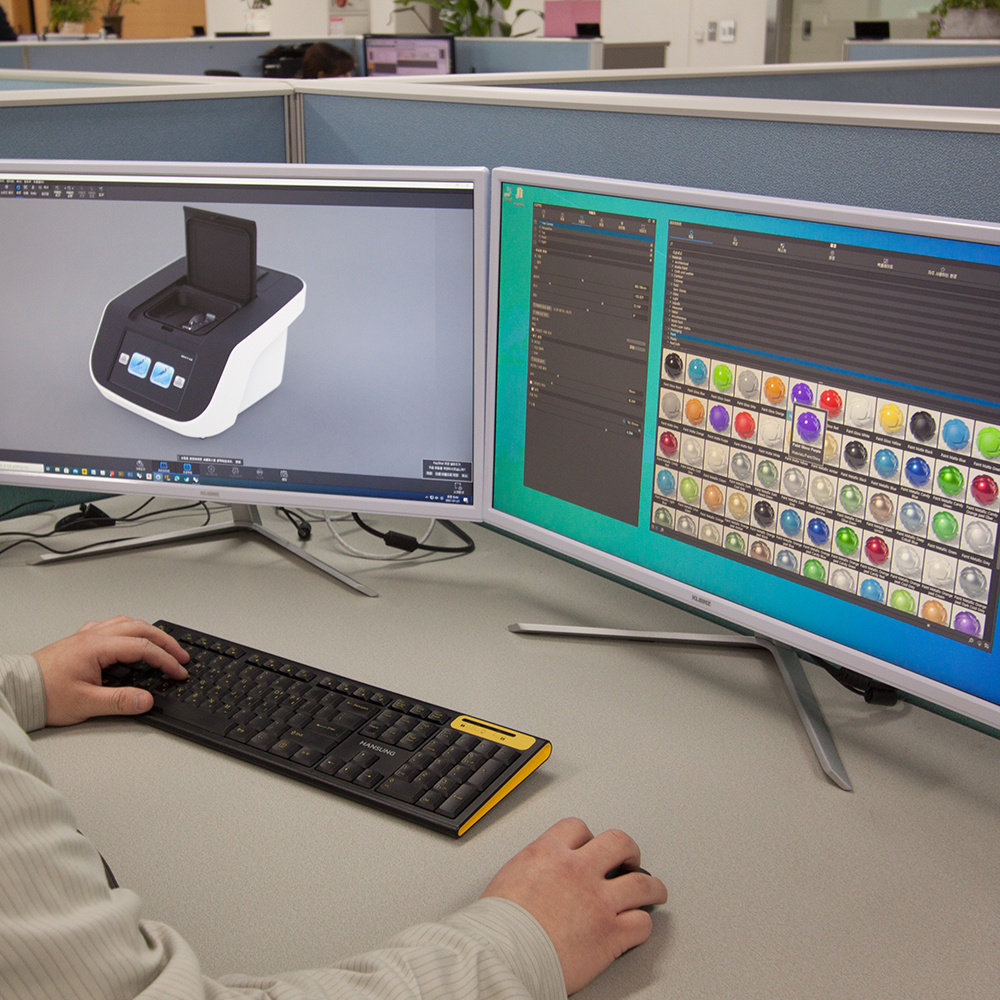

Concept sketch, 2D & 3D Design Modeling and drawing, 3D Rendering, Prototype mold development, Creating Part List (BOM)
• Hardware & Software Development :
Confirmation of circuit specification and drawing of circuit diagram, Software business solution analysis and confirmation, Firmware & Software Coding, PCB artwork and board sample production, Performance validation and testing
• Hardware & Software Development :

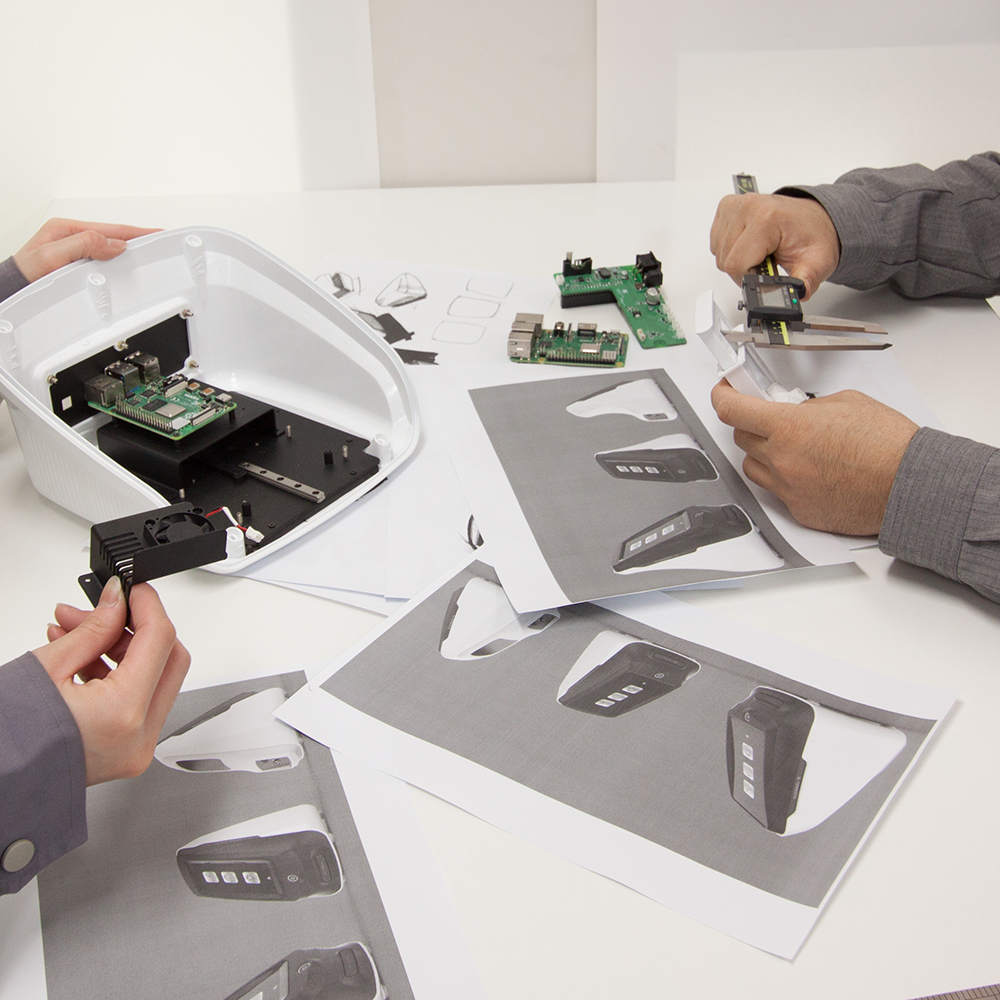

Working Mock-up, Design Mock-up, 3D printer, Vacuum mold, Support in getting product certification
• Mass Production :
PCB assembly, Mold development and production, Complete product assembly & Testing, Quality control
A total of 15 researchers and new product developers with many years of experience and technical knowledge work at BK Electronics R&D center. We can help you transform your ideas to real products.

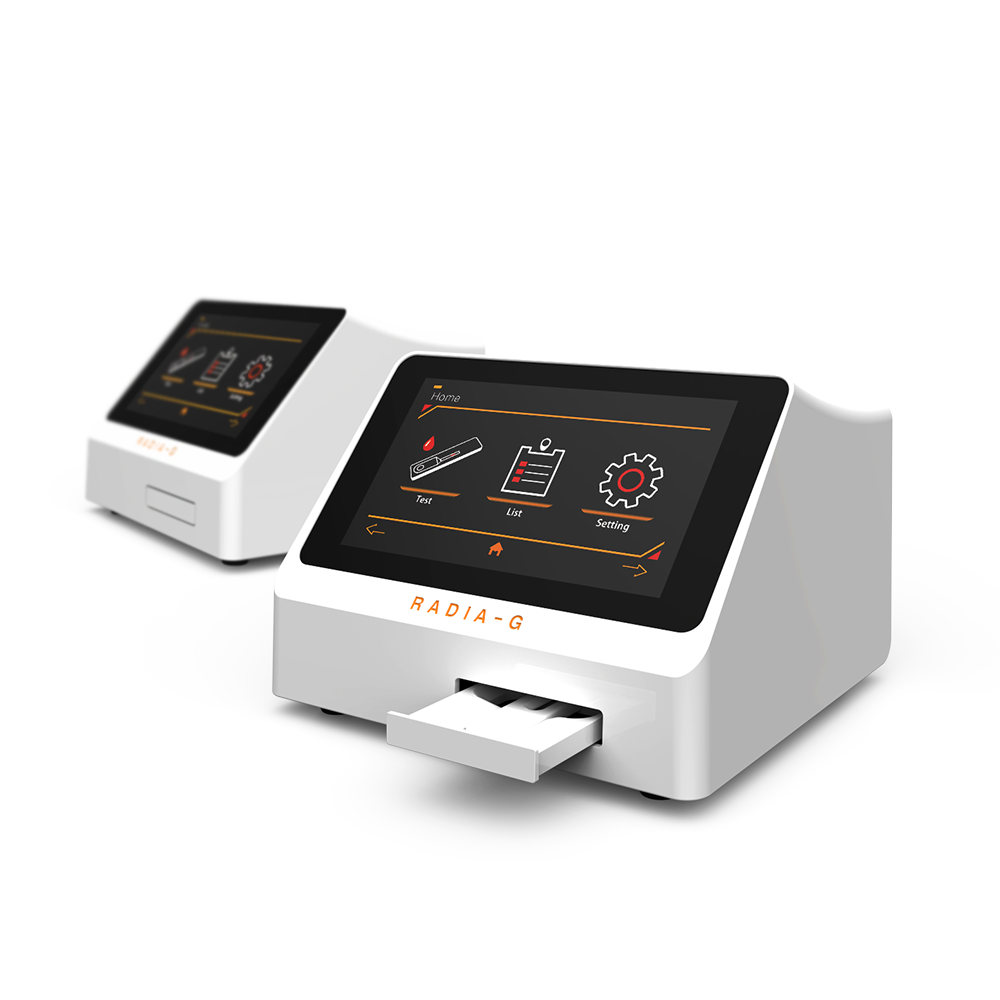

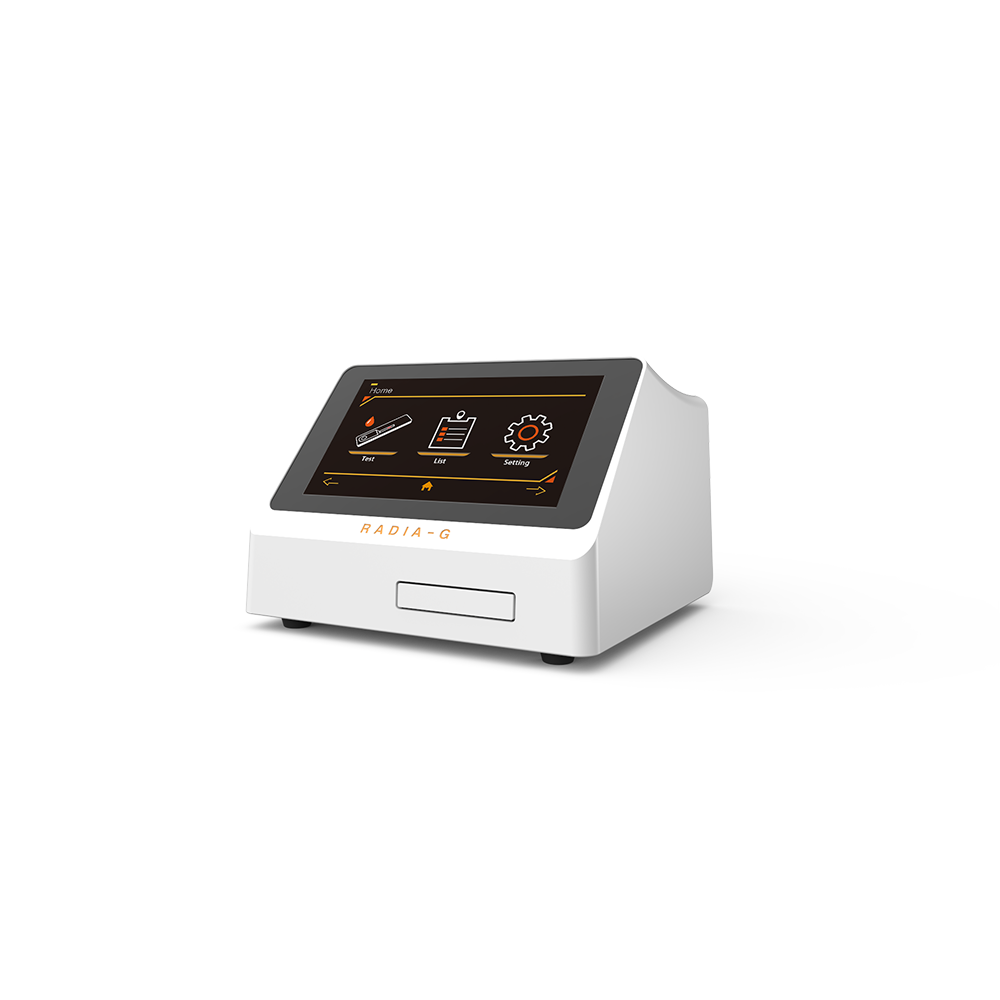

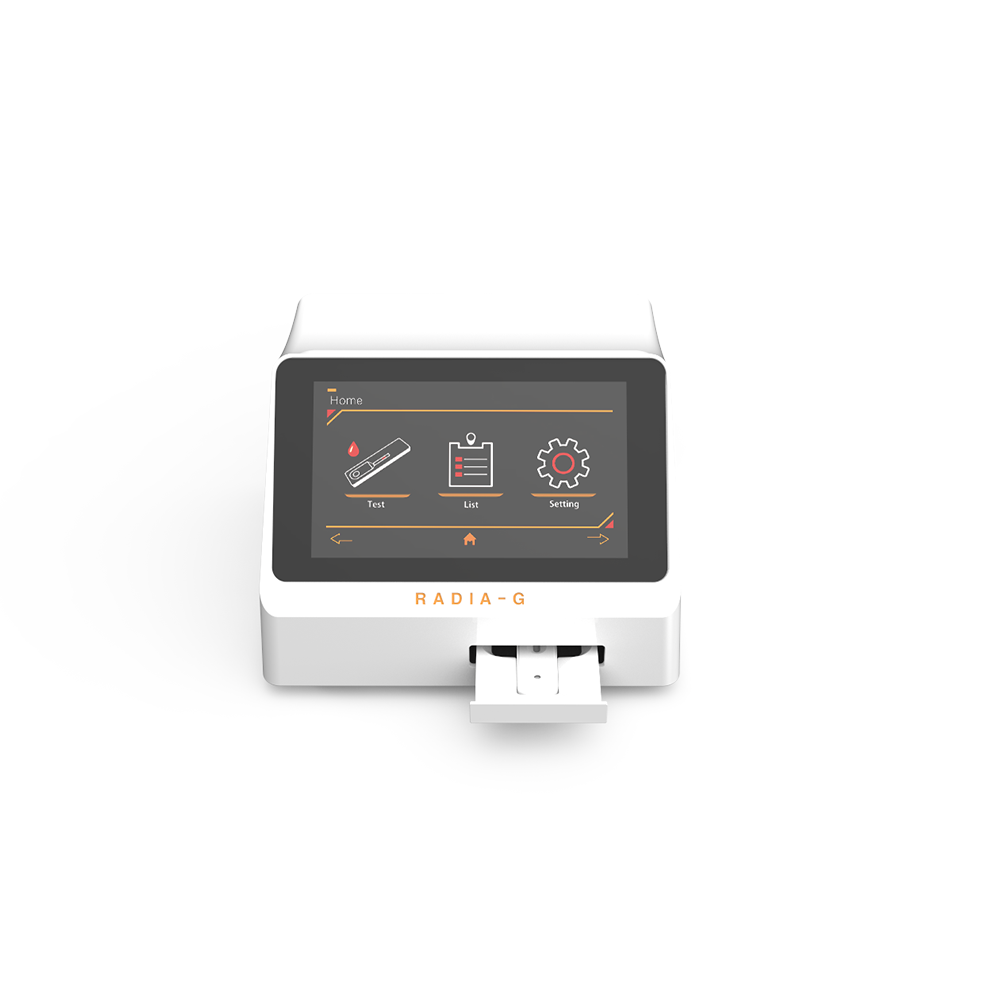

RADIA-G Rapid Test Kit Reader
RPD-1000 is a fully-customizable rapid test kit reader developed and manufactured by BK Electronics. It can accurately determine the results of rapid test kits and provide quantitative results through image analysis algorithm using Linux environment & camera openCV.
Main features
· Dual-Processor-based high-performance image processing and system control hardware
· Image analysis and reading algorithm based on mathematical models using Linux environment and camera OpenCV
· Reliability mechanism
· Built-in internal scanner (UDI information applied through Data Matrix code)
· 7” Touch Screen Display
· User-centered interface (UI)
· Dedicated, detachable thermal printer
· Ability to read multiple test lines
· Customizable cartridge tray for different types of Rapid test kit cassettes
Device Specifications
| Power |
DC 12V/2A, AC/DC Adapter(100-240V, ~60Hz, 1.0A) |
| Display |
7” Touch Screen Display(800 x 480) |
| Port |
USB2.0, 4 Ports, Ethernet 10/100/1000 Mbit/s 1Port |
| Camera image sensor |
Sony IMX219, 8M |
| Weight |
2kg |
| Dimensions |
200 x 200 x 160 |
| Printer (optional) |
Thermal Transfer Printing Head |
Company Overview
Established in 1987, BK Electronics is the leading contract manufacturer of electronics in South Korea, providing one-stop solutions from PCB Artwork and Assembly, to Boxbuild and Harness assembly. We specialize in high-tech fields, including industrial machines, medical robotics, military-grade and energy products, providing impeccable quality products and exceptional services. Additionally, to cater to different customer needs, we can provide High-Mix Low-Volume (HMLV) as well as Low-Mix High-Volume (LMHV) manufacturing solutions in our factories in Korea and Vietnam.
