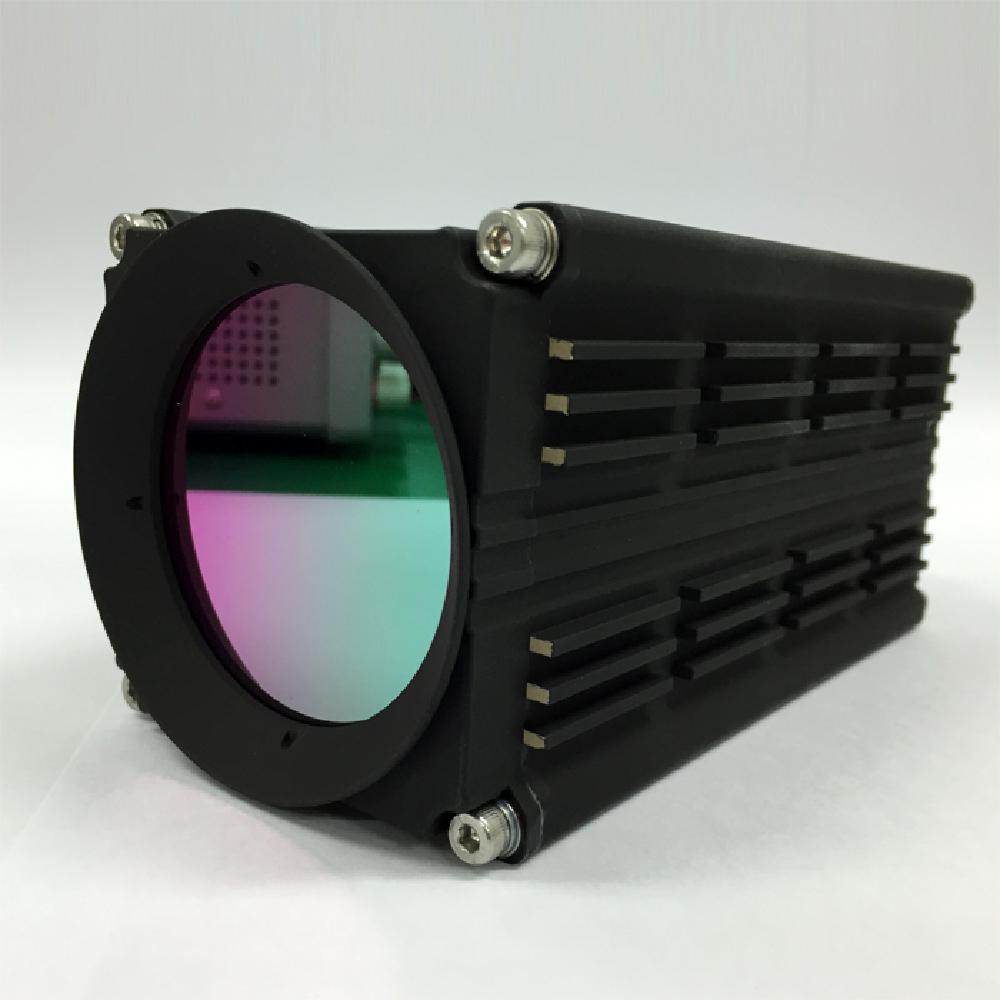

Thermal Imaging Driver Scope

Payment

T/T
MOQ

Negotiable
Country of sale

World Wide
Catalogue
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

Unbranded

Model TICA-DS280
origin

Republic of Korea
Size(Capacity)

PRODUCT DESCRIPTION

Ultra wide angle lens with 80° horizontal field of view

Fielded and Operational Tested: combat vehicle with TOPINS Thermal Imaging Driver Scope at a site in p pitch-black moonless night

Distortion-free wide angle vision

While almost all of existing Infrared lens with wide field of view have pronounced barrel distortion often giving a rise to misrepresentation of real world (it's known to give distractions, migraine and nauseating experiences to many operators hindering long and critical operations), TOPINS wide field of view lens module has essentially no distortion (<2%). This allows camera manufacturers to design most natural thermal imaging systems with TOPINS wide angle lenses.

Motorless and industry's first and only distortionless 80° Wide Lens Module / Rigorously tested with ROK Ministry of National Defense

Mechanically robust, solidly built and technically advanced

Motorless design

In addition, Infrared lens modules are prone to focus variations due to changes in the index of refraction caused by temperature differences, and hence need of driving motor to focus readjustments. However, TOPINS lens modules can optically compensate the changes in the index of refraction, making the lens modules mechanically robust, solidly built and technically advanced device for military and industrial applications.

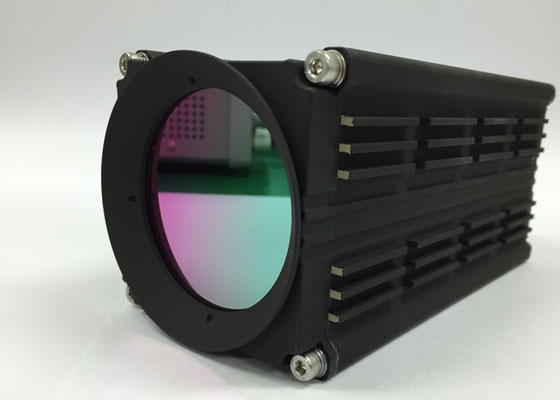

Wide Field of View Thermal Imaging Driver Scope
80° Wide Lens Module for uncooled IR camera

TICA-DS280 Thermal Driver Scope Specification

Classification	Value
Focal Length	6.25mm
F-number	F/1.2
Focus	Fixed Focus, Motorless
NETD	0.05°K at 30°C
Detector	640x480 Pixels, 17μm Pixel Pitch, Uncooled
Maximum Frame rate	30Hz
Waveband	8.0~12.0μm
FOV	>80 deg.(Horizontal)
Power	24±DC
Protocol/Interface	RS232C/NTSC or PAL
Image	Black & White/Pseudo Colors
Operating Temperature	-32°C to +57°C
Storage Temperature	-40°C to +70°C
Dimension/Weight	78(W) x 78(H) x 186(L)/1.5kg
Two of the most powerful features of TOPINS WFOV (wide field of view) lens modules are: 1. Optically designed to have distortionless ultra-wide angle vision with no focus variation caused by temperature differences. 2. Motorless Lens module design allows camera to function without moving parts. Solid, robust, milspec and rugged design of TICADS280 makes perfect thermal driver scope for critical situations.
